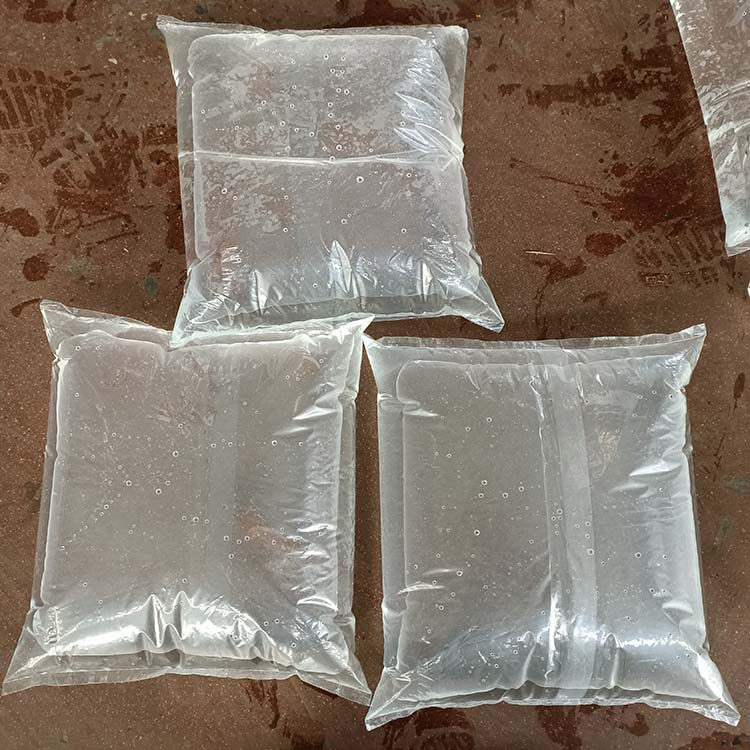

It is main used for water,fruit juice, jam, concentrated fruit juice , milk and so on. Raw material from sterilizer to aseptic filling machine and be filled into the aseptic bags.

The whole process must be aseptic.The machine is suitble for filling volume from 3L to 12.5L. Because of supermatic configures the machine be operated conveniently and efficiently.

The quantity of filling is controlled by flowmeter.

 1.PLC control

 2.High accuracy filling system

3.Flexible bag former

4.No need for compressor

5.Incorporate our machines into your production line, and see the result for yourself. Because it is fully automated

6.The parts where the liquid is flowing are made up of stainless steel that meet the requirements of food hygiene

7.Low power consumption and reduction

8.Production speed up to 400-600 bags per hour

9.Easy for the replacement of film

10Centralized control panel for operation convenience

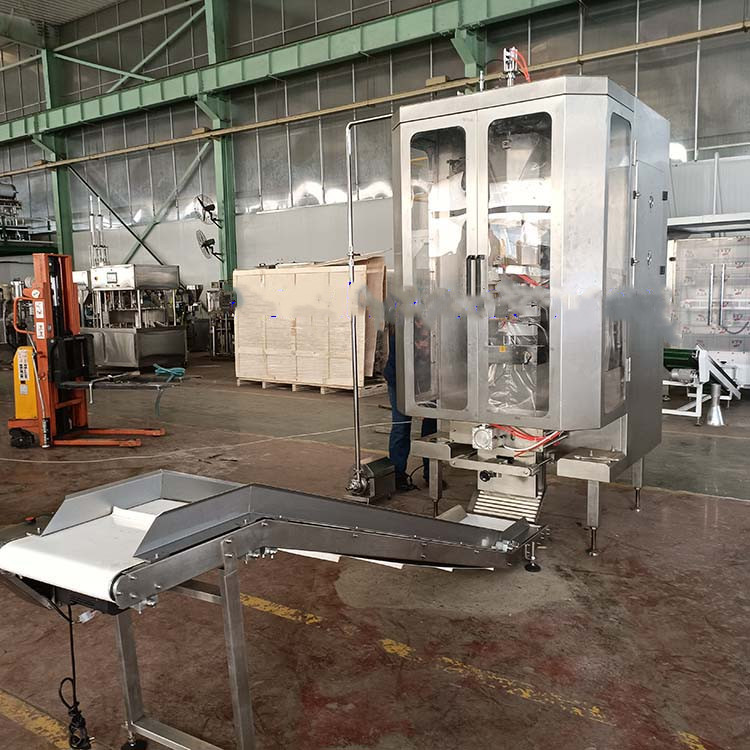

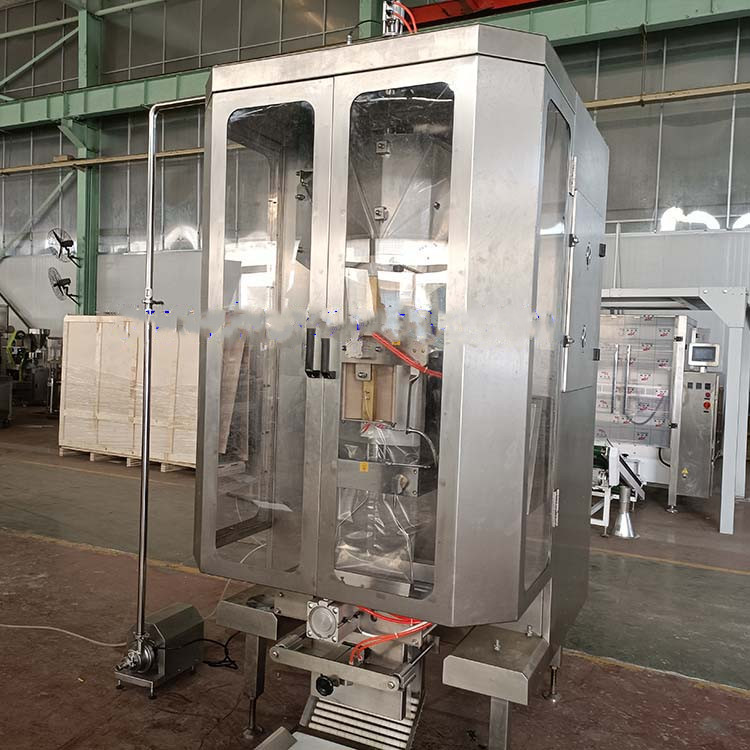

The technical data of the machine:

 Model:             KY-7500

Packing Method:     Auto Forming, Heat Seal

Power:              AC220V/380v±5% 50Hz 2.5KW

Capacity:           400-600 bags per hour

Film Width:         750 mm

Bag Width:          360mm

Content:            3-10L

Net Weight:         550kg

Machine dimensions: 1090X1500X2200LxWxH(mm)
