Customization of Sachet Juice Production Line Source Factory
Main performance and structural characteristics:

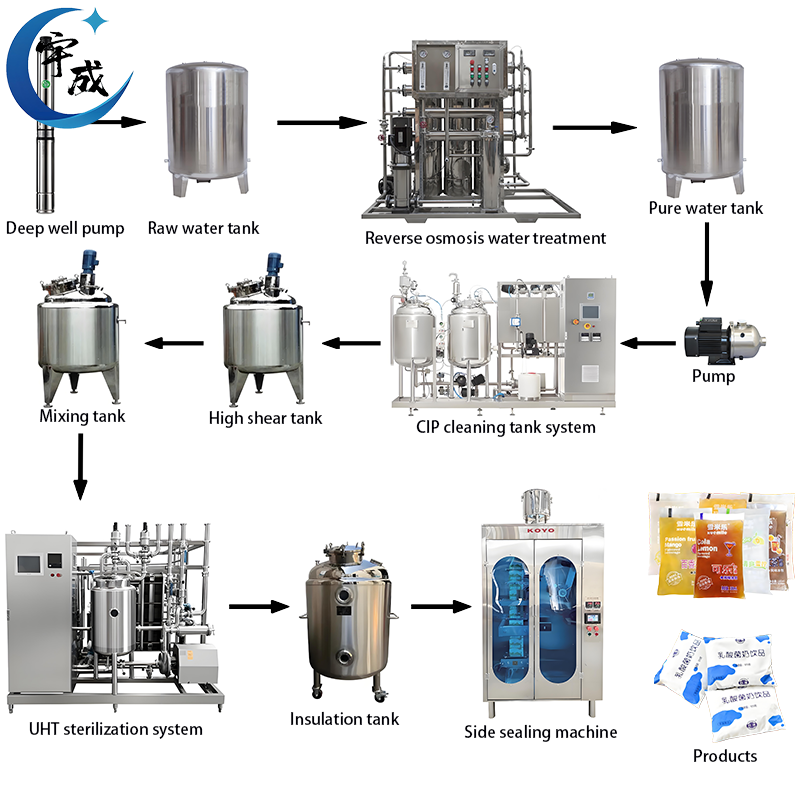

Hefei Yucheng Machinery Manufacturing Co., Ltd. has been committed to the liquid packaging industry for 30 years and is dedicated to serving new and old customers around the world. This bagged juice production line extracts groundwater through a deep well pump and fills it into a raw water tank. It is purified into pure water through a reverse osmosis water treatment system and stored in a pure water tank. It is introduced into a high shear mixing system and a mixing tank through a water pump, mixed with the formulated raw materials, and made into flavored beverages of various flavors required by customers. After being disinfected by a UHT sterilization system, it can enter the insulation tank and flow into the liquid packaging machine through pipes and water pumps. The final product can be obtained by filling and packaging through the packaging machine. The equipment in this production line can be replaced according to customer needs and can also be customized according to customer needs.
Specification parameters:
Included machines |
Function |
Deep well pump |
Extracting groundwater |
Reverse osmosis water treatment |
Treatment of raw water |
Raw water tank |
Storage of groundwater or river water |
Pure water tank |
Storage of pure water |
Water pump |
Extracting pure water |
CIP cleaning tank system |
Cleaning the inside of the tank |
High-speed mixing tank |
Mix and stir the raw materials |
Mixing tank |
Stir and mix into juice |
UHT sterilization system |
High temperature sterilization |
Insulation tank |
Insulation |
Side sealing machine |
Filling and packaging beverages |
