Pre-made pouch filling machine

Double Station Built-in Straw Pocket Stand up Premade Pouch Packing Machine

The machine has a wide packaging range and can package various packaging materials such as liquids, pastes, granules, powders, and solids. Different batching devices are equipped according to different materials....
  • DESCRIPTION
  • VIDEO

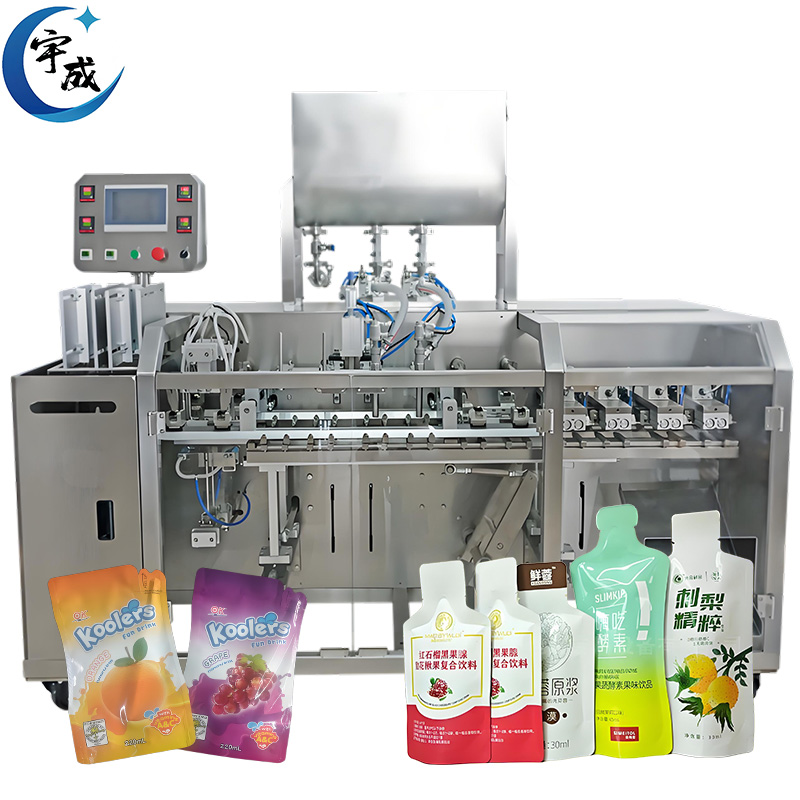

Double Station Built-in Straw Pocket Stand up Premade Pouch Packing Machine

Main technical features:

1. Applicable to food, medicine, chemical, and cosmetic industries. The packaging process is fully automatic and does not require manual operation. The machine has a wide packaging range and can package various packaging materials such as liquids, pastes, granules, powders, and solids. Different batching devices are equipped according to different materials.

2. Touch screen operation, PLC control, automatic sealing temperature compensation, precise temperature control, and beautiful sealing.

3. Packaging materials: PE composite film, such as pure aluminum, aluminum-plated prefabricated bags, and can quickly change the specifications of packaging bags

4. Fast packaging speed; stable operation; easy maintenance

5. Advanced design concept, reduce material loss, ensure stable equipment operation, and extend equipment life.

6. The machine uses prefabricated bags, good sealing quality, and improves product quality and grade

 Specification parameters:

MODEL

YC-SP130

Measuring range

10-100g

Packaging Speed

55-70bags / min

Pre-made bags: long

80-180mm

 Pre-made bags: width

55-120mm

Weight

550kg

External Dimensions

2192* 1356 * 1738 mm

Gas source

≥0.6Mpa

Power

AC220V / 50 - 60Hz / 4.5kw
